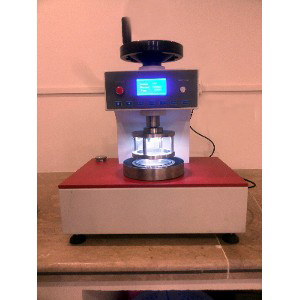

This machine is used to determine not only the fabric hydrostatic pressure resistance, but also the hydrostatic pressure proof performance of the coating materials.

Standards: ISO-811, AATCC 127, BS EN20811, ISO 1420

Features:

 Microcomputer control, English LCD menu, four built-in test methods .

The built-in tank design, creative balance system of water pressure rate, rising speed stability and accuracy.

Clamp made of stainless steel, equip LED light to view specimen clearly

Testing Methods:

Turbocharged  Constant pressure time

(It means at the constant pressure, how long can appear the first water drop on the specimen)

Constant pressure regularly (It means at the constant pressure and specify time,

if can appear water drop on the specimen).

Leakage water method

Technical Parameter:

Testing range: 0.5kpa-200kpa

Accuracy: 0.2%F.S

Elevation Speed: 1kpa-30kpa

Clamp Area: 100cm²

Testing Units:（pa  mmHg     cmH₂O）

Power: AC 220V 50Hz

Dimension: 550x400x500mm

Weight: 55kg
